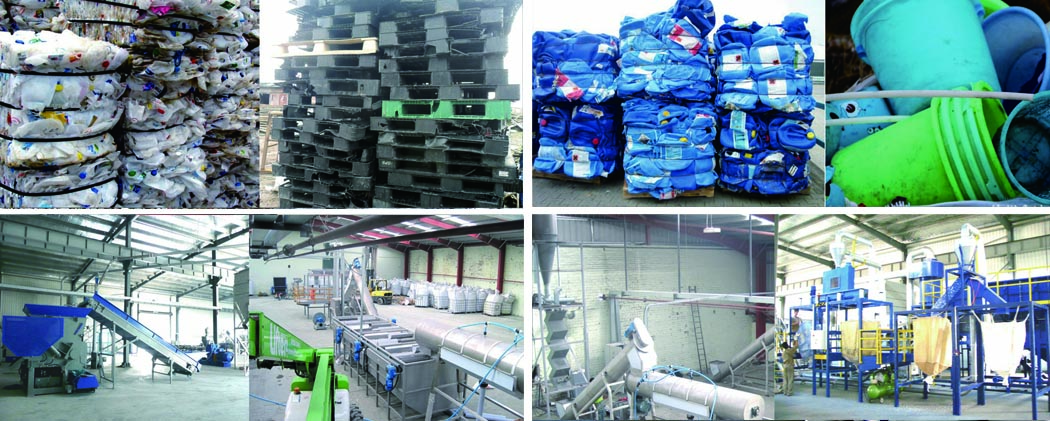

In the field of the recycling plants for HDPE and PP materials coming from urban and industrial collection sites, the HDPE and PP waste vary significantly from country to country, but also within the same country. Also the HDPE and PP materials has different size from small to big:
HDPE /PP bottles and containers,
HDPE /PP barrels and boxes
HDPE /PP chairs,desk, pipes
GET has developed HDPE recycling line continuously, a series of modular components can be provided to match the different features of HDPE/PP materials.
With GET¡¯s tailor made recycling solutions, the most of the worst contaminants are eliminated in early step to reach the best final flakes quality with low consumption.
Capacity: 1000kg/h, 2000kg/h, 3000kg, 5000kg/h
Typical Process
|
|
Optional ,depends on raw materials .
|
Estimated plant parameters
|
Model
|
Capacity (output)
|
Power installed
|
Area
|
Steam
|
Compressed Air
|
Water supply
|
|
PEPP10
|
1000kg/h
|
150kw
|
200m^2
|
*
|
0.5m^3
|
2m^3
|
|
PEPP20
|
2000kg/h
|
190kw
|
300m^2
|
*
|
0.5m^3
|
3m^3
|
|
PEPP30
|
3000kg/h
|
250kw
|
400m^2
|
*
|
1m^3
|
4.5m^3
|
|
PEPP50
|
4500kg/h
|
400kw
|
500m^2
|
*
|
1m^3
|
6m^3
|
Unit consumption
|
No.
|
Item
|
Average consumption per ton film
|
No.
|
Average consumption per ton film
|
Water supply
|
|
1.
|
Electricity
|
50-80kw
|
3.
|
Washing detergent (optional)
|
0-3kg
|
|
2.
|
Steam (optional)
|
0-100kg
|
4.
|
Water
|
0.8-1.5T
|
|
